How to Install an Air Admittance Valve
An air admittance valve, or AAV, allows air to enter a drain and vent system when draining water creates negative pressure. The valve then closes at neutral or positive pressure. This guide explains how to install a Tuuber AAV under a sink, in an island or peninsula sink layout, and as a replacement. Always confirm local requirements and follow the product instructions before starting.
Important: An AAV is not a positive-pressure relief device. The building must still have the required open-air venting and pressure relief. Keep the valve indoors, accessible, upright, and within the permitted developed vent length.
Before You Install: Code, Location, and Valve Selection
Start by checking the requirements that apply to the building and the specific installation. AAV use can vary by jurisdiction and application. Confirm the allowed configuration, required height, access for inspection, and any relief vent requirements before cutting or joining pipe. The building must retain the required open-air venting for positive-pressure relief. Follow current Tuuber instructions and local requirements for the applicable ASSE 1050 stack or ASSE 1051 individual or branch configuration.
- Choose the right model: The Tuuber 1-1/2 inch model 174015 is rated up to 8 DFU for individual or branch applications and 8 DFU for stack applications. The 2 inch model 174020 is rated up to 10 DFU for individual or branch applications and 12 DFU for stack applications. Confirm the applicable load and model with current Tuuber documentation.
- Plan the location: The valve must remain accessible, have free air passage, stay inside the building, and be installed upright within 15 degrees of vertical plumb.

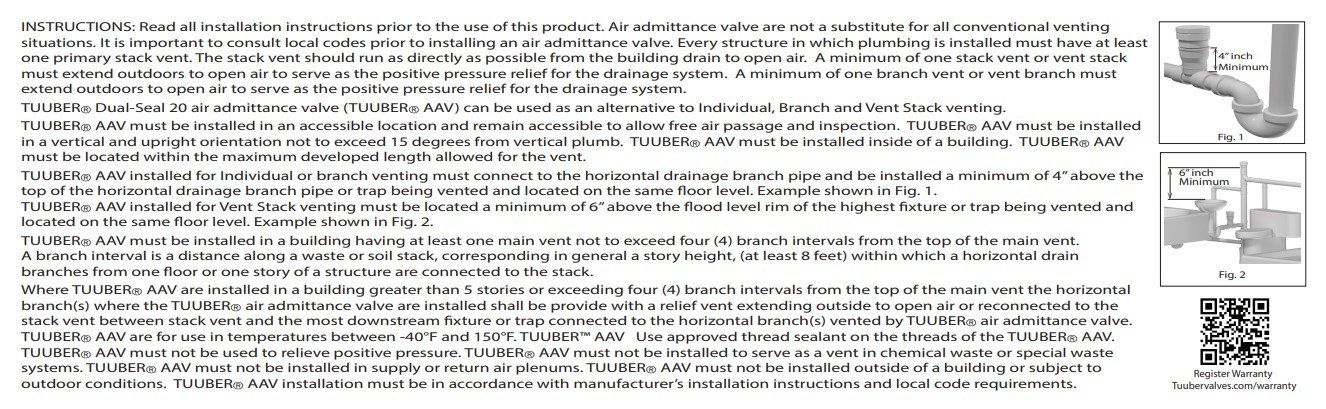

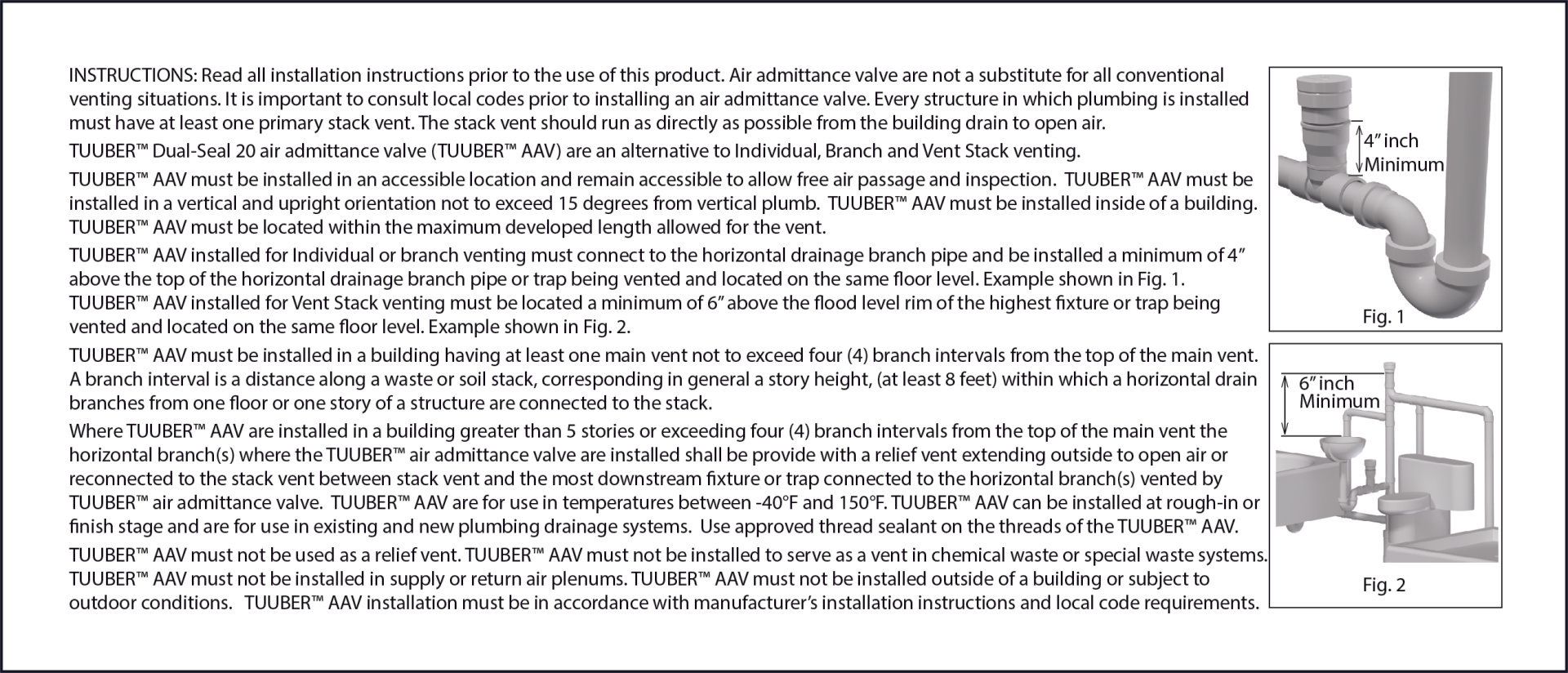

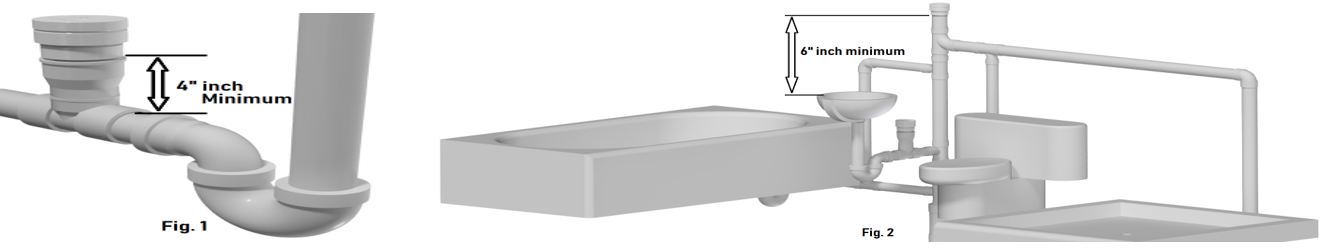

- Check the height: For individual or branch venting, install the valve at least 4 inches above the top of the horizontal branch drain or trap being vented. For stack venting, the valve must be at least 6 inches above the flood level rim of the highest fixture or trap being vented, as applicable to the approved configuration.
- Gather tools and materials: Have a measuring tape, marker, plastic pipe cutter or saw, deburring tool, bucket, towel, compatible fittings or adapters, and approved thread sealant. Use only the connection method and materials specified in current Tuuber product instructions.
For individual or branch venting, the valve must be on the same floor level as the trap or fixture being vented. For stack venting, keep the valve on the same floor level as the highest fixture or trap being vented. The valve must remain within the maximum developed length allowed for the vent.
A Tuuber AAV is intended for indoor use and must not be installed outdoors, in a chemical or special-waste system, or in a supply or return air plenum. Tuuber AAVs are specified for use from -40 degrees F to 150 degrees F. If the building is greater than five stories or the installation is more than four branch intervals from the top of the main vent, follow the current instructions for a relief vent or reconnection to the stack vent.
A branch interval generally corresponds to a story height along a waste or soil stack where a horizontal drain connects to the stack. Confirm the project-specific interpretation with the local authority before installation.
Fixture application and DFU reference:
Application: Public bathroom group with toilet, tub or shower, and sink. DFU: 6
Application: Private bathroom group with toilet, tub or shower, and sink. DFU: 5
Application: Public toilet. DFU: 4
Application: Private toilet. DFU: 3
Application: Washing machine. DFU: 3
Application: Bathtub with shower. DFU: 2
Application: Kitchen sink. DFU: 2
Application: Dishwasher. DFU: 2
Application: Shower up to 5.7 gpm. DFU: 2
Application: Bathroom sink. DFU: 2
Application: Drinking fountain. DFU: 0.5
How to Install an Air Admittance Valve Under a Sink
- Plan the connection. Identify the horizontal branch drain or trap arm being vented. Confirm that the planned valve location meets the required height and leaves enough room for inspection and future service.
- Prepare the work area. Place a bucket and towel below the connection. If the existing trap or drain section must be removed, protect the cabinet and keep removed parts organized.
- Prepare the pipe. Measure twice, then make a square cut with a suitable pipe cutter or saw. Deburr the cut end so it seats fully in the fitting. Dry-fit the pieces before applying any joining material.
- Install the fitting or adapter. Use the correct connection method for the pipe and fitting. Apply approved thread sealant to the AAV threads when required by the product instructions. Use only joining materials and methods specified for the connection.
- Set the valve upright. Install the AAV in a vertical and upright position, no more than 15 degrees from vertical. Keep the air inlet clear and do not seal the valve inside an airtight enclosure.
- Inspect and test. Allow joining materials to set as directed. Run water through the fixture, check every connection for leaks, and confirm that the drain clears normally. Recheck the installation after the first use.
How to Install an AAV for an Island or Peninsula Sink
Island and peninsula sink layouts need additional planning because the usual wall route may not be available. An AAV can be part of a compliant solution for some configurations, but the local authority and the approved installation instructions determine whether it is allowed.
- Confirm the allowed configuration before opening the cabinet or floor. Ask which venting and relief provisions apply to the project.
- Map the trap arm, branch drain, and valve location. Keep the AAV accessible inside the building and above the required height for the venting application.
- Keep the valve upright and clear of stored items. Do not bury it behind a finished surface or place it where inspection cannot be performed.
- Complete a leak and drainage test before closing the cabinet or covering the work. Keep the installation instructions with the building records.
How to Replace an Existing Air Admittance Valve
- Shut down the fixture and protect the area. Place a bucket below the connection and remove the existing valve carefully.
- Inspect the connection. Check the threads, adapter, trap arm, and surrounding pipe for damage, debris, or movement. Replace damaged parts before installing the new valve.
- Confirm compatibility. Match the replacement size to the connection and verify that the DFU load and application are appropriate for the selected Tuuber model.
- Install the replacement. Use approved thread sealant when required, start the threads carefully, and tighten according to the current product instructions. Keep the valve upright and accessible.
- Test the finished work. Run the fixture, inspect for leaks, and confirm normal drainage. Use of cleaners or chemicals on the AAV voids the warranty.
Common Installation Mistakes to Avoid
- Installing the valve horizontally, upside down, or more than 15 degrees from vertical.
- Placing the valve below the required height or outside the building.
- Hiding the valve where it cannot be inspected or serviced.
- Using an AAV as a substitute for required open-air venting or positive-pressure relief.
- Skipping local requirements or selecting a model without confirming the fixture load.
- Using cleaners or chemicals on the valve, which voids the warranty, or using an unapproved joining method.
Choosing a Tuuber AAV and Assembly Kit
Tuuber offers standalone AAVs, flexible coupling configurations, a Tee adapter with AAV Assembly Kit, an Easy Install AAV and Trap Assembly Kit, and a pre-assembled trap assembly. Review the Tuuber AAV specifications and use Choose your application to review available assembly options. If the size, load, or configuration is unclear, contact Tuuber support before installation.
Frequently Asked Questions
How high should an air admittance valve be installed?
For individual or branch venting, install the valve at least 4 inches above the top of the horizontal branch drain or trap being vented. Stack applications have a different height requirement, so confirm the approved configuration and current local requirements before installation.
Can an AAV be used for an island or peninsula sink?
An AAV may be allowed for some island or peninsula sink configurations, but the answer depends on local requirements and the approved layout. Confirm the configuration before installation and keep the valve upright, accessible, and above the required height.
Does an AAV replace the required open-air vent?
No. An AAV is not a positive-pressure relief device. The building must still have the required open-air venting and relief provisions for the drainage system.
Can an AAV relieve positive pressure?
No. An AAV opens to admit air when negative pressure is created by drainage. It must not be used to relieve positive pressure.
Which Tuuber AAV model should I use?
Select the model based on the connection size, application, and applicable DFU load. Model 174015 is the 1-1/2 inch option rated up to 8 DFU for individual or branch applications and 8 DFU for stack applications. Model 174020 is the 2 inch option rated up to 10 DFU for individual or branch applications and 12 DFU for stack applications. Confirm the selection with current Tuuber documentation.
Need help choosing a Tuuber valve or assembly kit? Contact Tuuber support before you begin.
