Air Admittance Valve Features
An air admittance valve admits air into a DWV system when negative pressure develops. Tuuber's design uses an upper seal and a lower seal, with a middle flow passage, external inlet opening, internal inlet filter, and NPT threads connection identified among the valve components. An AAV does not relieve positive pressure. Local code and manufacturer instructions control installation.
How Tuuber Air Admittance Valve Features Work
Dual-Seal Construction

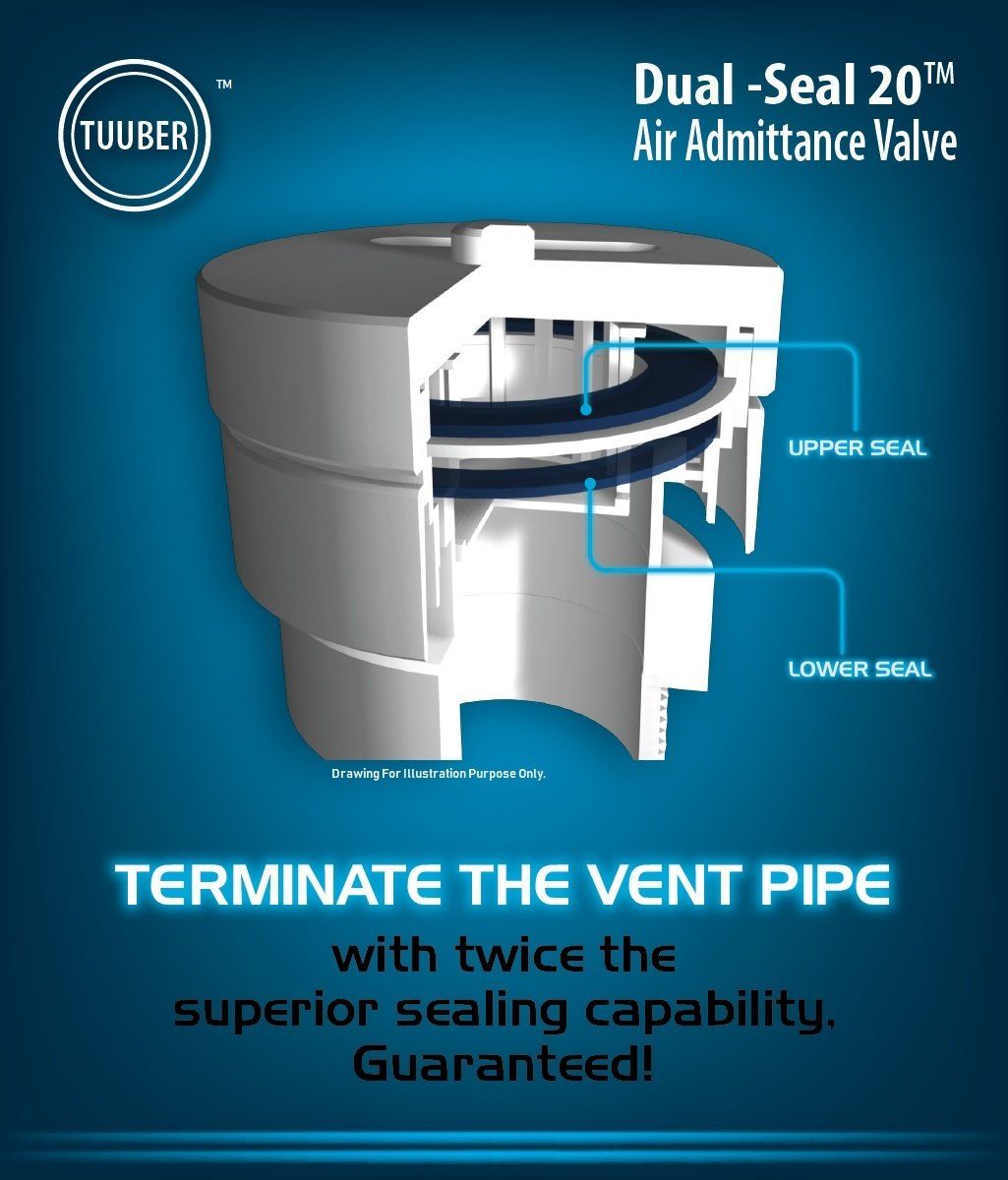

The feature diagram shows two sealing points, an upper seal and a lower seal. These components are part of the valve design described on this page. For product and application details, see Tuuber dual-seal air admittance valve.
Triple Flow Passage
The feature information identifies a triple flow passage with an external opening, middle flow passage, and internal inlet filter. This is a component description, not a quantified flow or pressure claim.
Internal Inlet Filter and External Opening
The internal inlet filter and external inlet opening are identified parts of the valve design. Keep the inlet area clear and follow the current manufacturer instructions for installation.
Air Admittance Valve Components
Upper Seal and Valve Seat
The upper seal and upper valve seat are labeled components in the cutaway illustration.
Lower Seal and Valve Seat
The lower seal and lower valve seat are also labeled components that complete the illustrated dual-seal arrangement.
NPT Threads and Available Sizes
The feature information identifies an NPT threads connection and availability in 1-1/2 in. and 2 in. configurations. See technical specifications for current ratings and dimensions.
Where These Features Fit in a DWV System
Negative-Pressure Venting and Trap Protection
An AAV admits air when negative pressure develops in a DWV system, helping address trap siphonage. It is not a positive-pressure relief device and does not replace required venting for positive-pressure conditions. For operating mechanics, see how an air admittance valve opens and closes. For installation guidance, see air admittance valve installation instructions.
Air Admittance Valve Standards and Installation Limits
Installation must follow current manufacturer instructions and the requirements of the applicable local code. For the product, sizes, and application information, review the Tuuber dual-seal air admittance valve page.
